Orifice plate flowmeter

PLV-CF20 series orifice plate flowmeter

Orifice plate flowmeter is a type of split flow meter, with a float flowmeter installed on the edge of the measuring tube and combined with the split orifice plate as a whole.

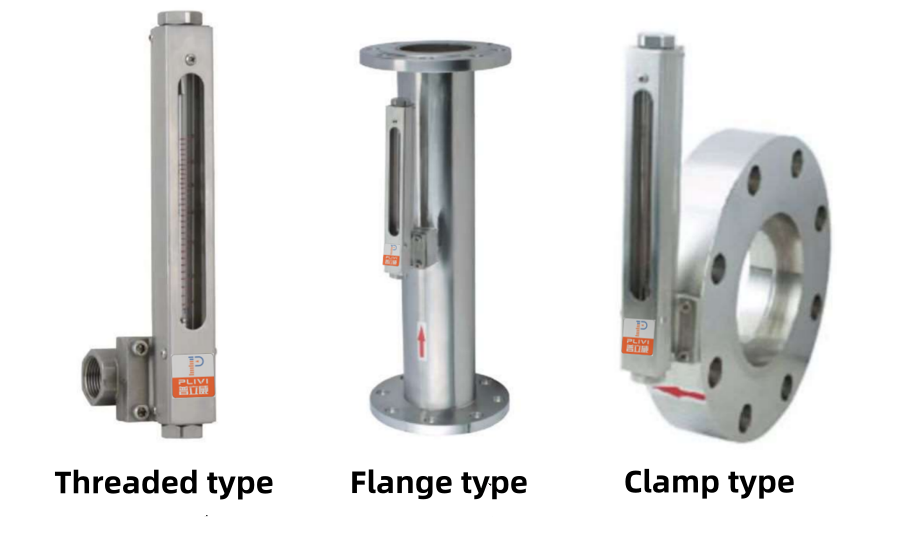

There are four different connection methods for users to choose from, namely threaded, flange, clamp, and separated types.

When the fluid flows through the main orifice plate, a differential pressure is generated on both sides of the orifice plate, which is equivalent to the flow rate value,

Install a float flowmeter in the diversion inlet and outlet, so that the flow through the float flowmeter is equivalent to the flow through the main pipeline,

So the flow rate of the fluid in the main pipeline can be indicated by the scale of the glass float flowmeter.

Medium temperature: PVC: 0-60 ℃,

SS304: 0-120 ℃

Accuracy: ± 3%

Working pressure: 1.0MPa

The PLV-CF20 series orifice plate flowmeter has the following product models and measurement ranges:

Model measurement range

Specification Water (m3/h) Air (Nm3/h)

Model: PLV-CF2010 0.1~0.5 0.8~4

Model: PLV-CF2015 0.2-1 2-10

Model: PLV-CF2020 0.5~2.5 5~25

Model: PLV-CF2025 1-5 8-40

Model: PLV-CF2032 1.4-7 12-60

Model: PLV-CF2040 2-10 18-90

Model: PLV-CF2050 4-20 35-175

Model: PLV-CF2065 7-35 60-300

Model: PLV-CF2080 10-50 80-400

Model: PLV-CF2100 18~90 160~800

If there are any other matters not covered, please contact our sales team:

Email: info@plivi.com.cn

Above, thank you for your support!
