PLV-SF50 series horizontal tube spring flowmeter

The PLV-SF50 series horizontal tube spring flowmeter is a variable area instrument with a conical measuring body inside the floating piston,

Form a conical opening with the body. The fluid forms a pressure difference at both ends of the sharp edge measuring hole through a flow meter,

Move the float in the direction of the compression spring. The displacement of the float is precisely proportional to the flow rate (velocity).

Flowmeters can be installed in any direction, even upside down. By observing the red indicator ring on the float, the measured flow rate can be indicated.

The flowmeter can be installed in any position without affecting accuracy. It can be installed on horizontal or vertical pipelines and is suitable for monitoring various liquids and gases.

Temperature: PC: 0~60 ℃ PSU: 0~100 ℃

Accuracy: ± 6%

Can be equipped with upper and lower limit alarm switches

Working pressure: ≤ 1Mpa

The PLV-SF50 series horizontal tube spring flowmeter has the following product models:

Model: PLV-SF51,  Measurement range: 12~90LPM

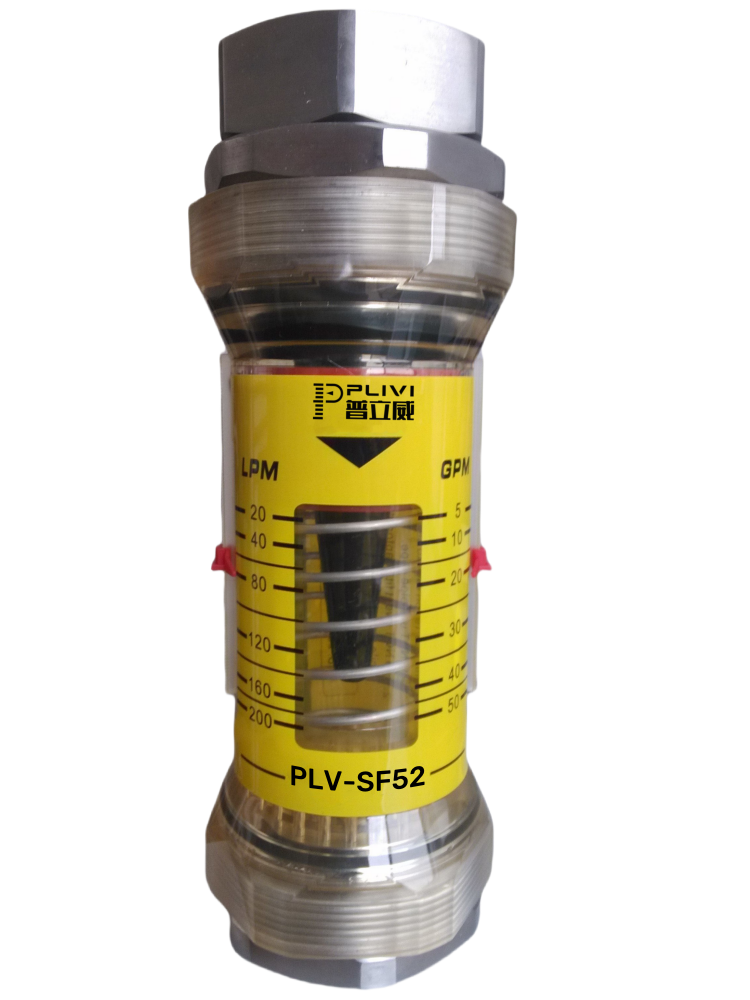

Model: PLV-SF52,  Measurement range: 20~200LPM

Model: PLV-SF53,  Measurement range: 30-300LPM

Model: PLV-SF54,  Measurement range: 40-400LPM

If there are any other matters not covered, please contact our sales team:
